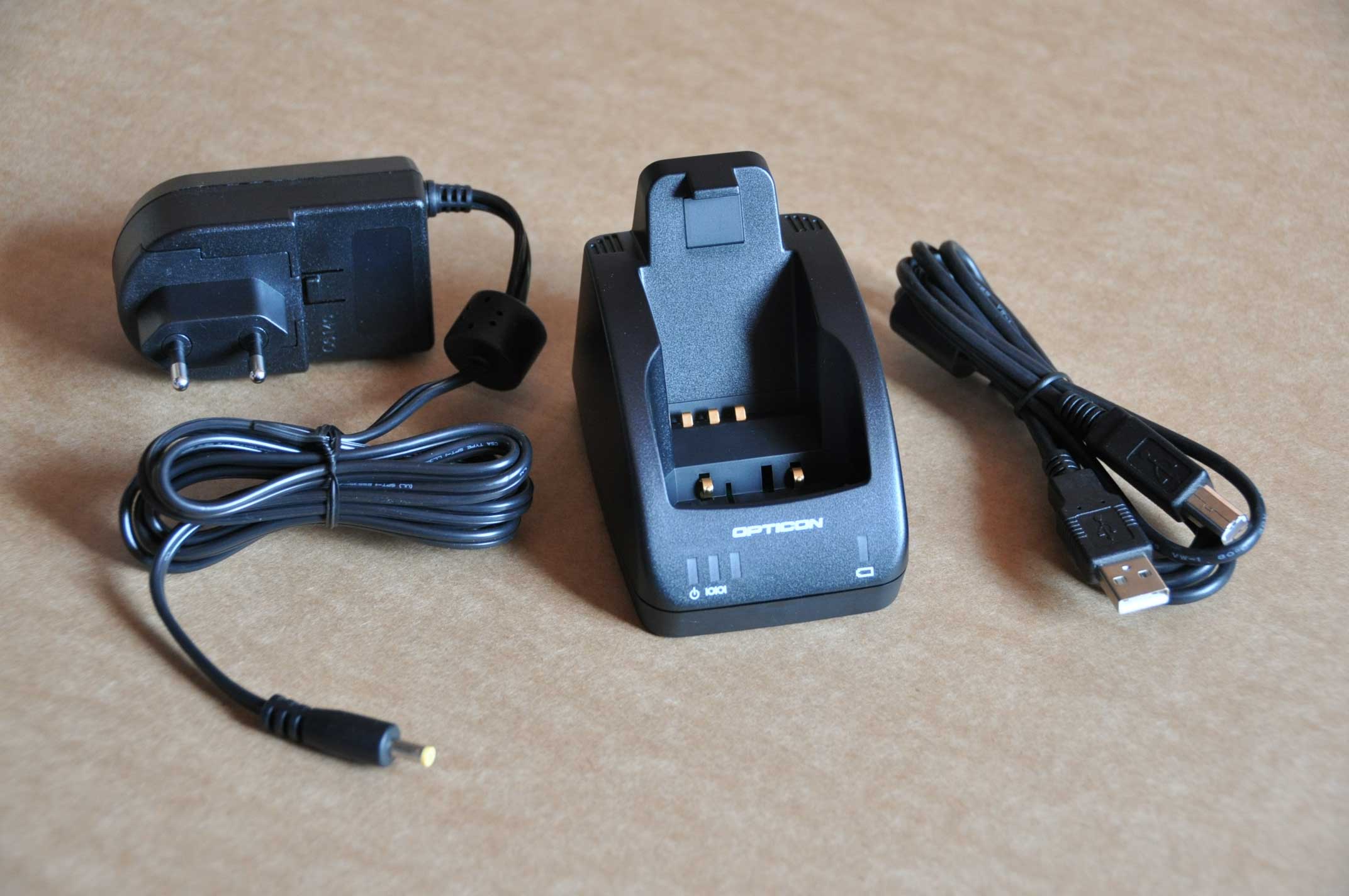

Opticon CRD 1006 cradle
For barcode reader terminal battery charging and data transfer
Reference: CRDO1006EN
This cradle is used both to recharge the battery of an Opticon OPH terminal and to transfer inventory data from the terminal to a PC.
The connection between the cradle and the PC is ensured by a USB cable.
The cradle also has a slot for charging an additional battery.
1 power adapter (charger)
4 plug adapters
1 USB cable
1 RS232 cable
The connection between the cradle and the PC is ensured by a USB cable.
The cradle also has a slot for charging an additional battery.
Contents of the box
1 cradle
1 power adapter (charger)
4 plug adapters
1 USB cable
1 RS232 cable
Technical specifications
Make and model
Opticon CRD 1006
Dimensions
Width: 64 mm / Height: 73 mm / Depth: 100 mm
Weight
470 g
USB cable
Communication cable: USB 2.0 / Connectors: USB-A male, USB-B male / 1.8m
RS232 cable
Communication cable: RS232 / Connectors: SubD9 female - RJ45
Power cable
Power adapter + 4 plug adapters for EU / UK / US / AU
Manufacturer's brochure
